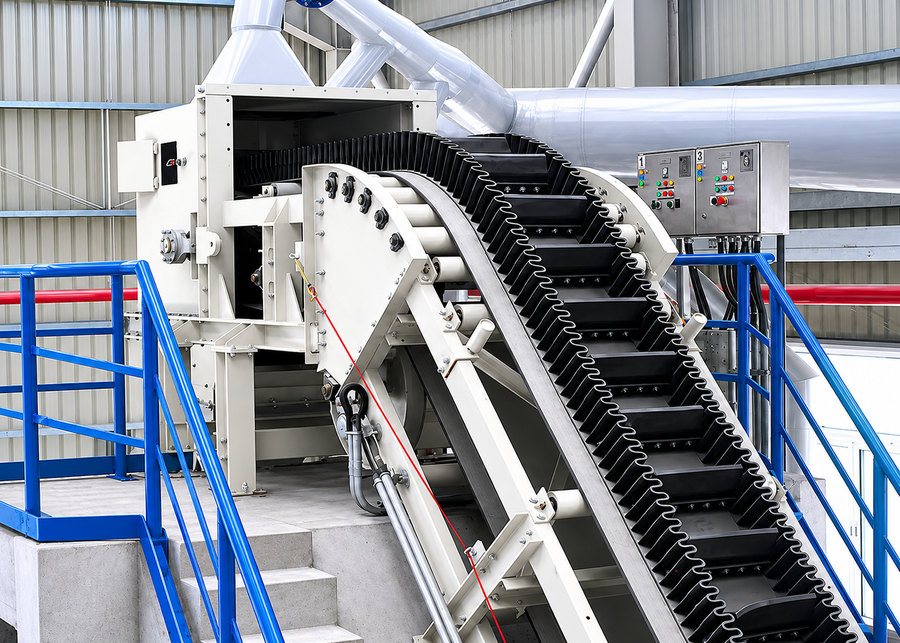

Sidewall Conveyor Belt
Product Features
- High Inclination Capability
- Space-Saving Design
Hot Vulcanised Bonding

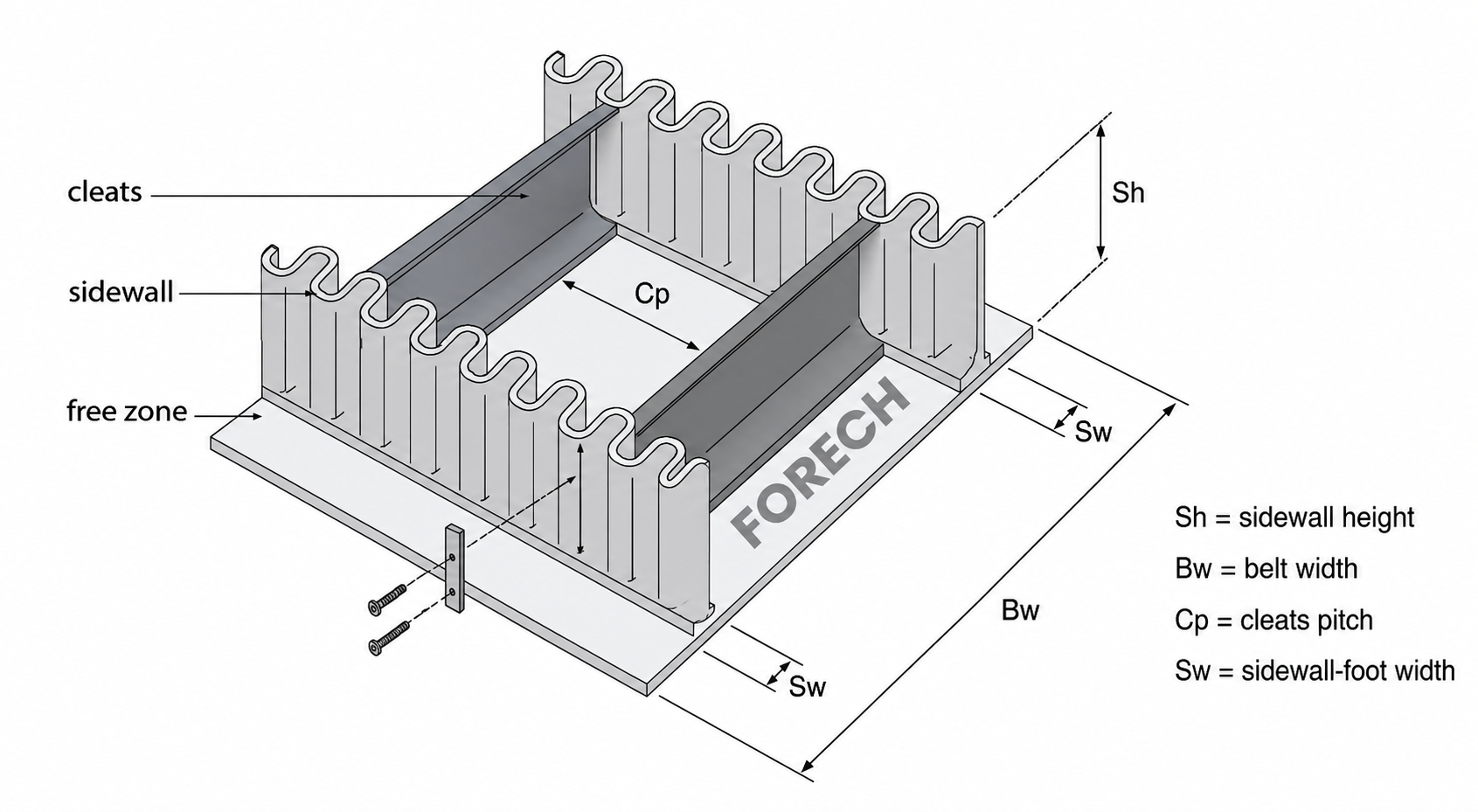

Typical Cross Section of Sidewall Belt
Standard Range of Sidewalls
| Sidewall Type | Height (mm) | Base Width (mm) | Pitch (mm) | Weight/mtr (Kgs) |
| N (Non-Fabric Reinforced) | N 60 | 50 | 40 | 1.6 |
| N 80 | 50 | 40 | 1.8 | |
| N 100 | 50 | 40 | 2.1 | |
| N 120 | 50 | 40 | 2.3 | |
| S (Fabric Reinforced) | S 120 | 50 | 40 | 2.4 |
| S 160 | 78 | 63 | 4.5 | |
| S 200 | 78 | 63 | 5.5 | |
| S 240 | 78 | 63 | 6.8 | |
| S 160 | 75 | 60 | 4.7 | |
| S 200 | 75 | 60 | 5.7 | |
| S 240 | 75 | 60 | 6.6 | |
| S 250 | 75 | 60 | 7.1 | |
| S 280 | 75 | 60 | 7.8 | |
| S 300 | 75 | 60 | 8.2 | |
| S400 | 100 | 80 | 18.5 |
Standard Range of Cleats
| Type | Height (mm) | Base Width (mm) | Weight/mtr (Kgs) |
| T 40 | 40 | 70 | 0.9 |
| T 50 | 50 | 70 | 1 |
| T 60 | 60 | 100 | 1.3 |
| C 70 | 70 | 110 | 2.5 |
| C 110 | 110 | 110 | 3.2 |
| TC 90 | 90 | 100 | 2.6 |
| TC 110 | 110 | 110 | 3.5 |
| TC 140 | 140 | 150 | 5 |
| TC 180 | 180 | 150 | 6.5 |
| TC 220 | 220 | 150 | 8 |
| TC 230 | 230 | 150 | 10 |
| TC 260 | 260 | 160 | 11.9 |
| TC 280 | 280 | 173 | 14 |
| TCWD 280 | 280 | 270 | 21.5 |
| TCWD 360 | 360 | 270 | 23 |
