Conveyor Belts

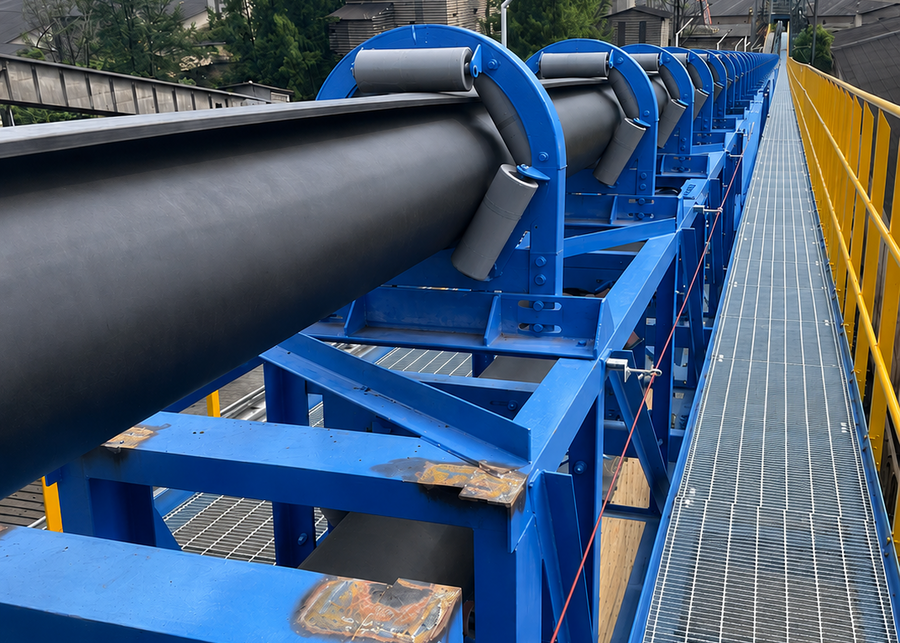

Pipe Conveyor Belt
TECHNOLOGY & MANUFACTURING CAPABILITY
FORECH has perfected the technology of supplying steel cord reinforced pipe conveyor belts and synthetic fabric reinforced pipe conveyor belts up to a maximum width of 2500 mm, translating to an inner pipe diameter of approximately 700 mm with adequate overlap. Various belt constructions are available depending on conveying path configurations.
Product Features
- Fully enclosed conveying system prevents spillage and dust emission
- Protection of material against rain, dust, wind and temperature fluctuations
- Significant reduction in wastage, maintenance and operating costs
- Reduced noise emission levels
- Ability to negotiate horizontal, vertical and three-dimensional curves
- Reduction in structural cost by eliminating conveyor canopy
- Material conveying possible up to inclinations of 35° without carry-back
- Space constraints effectively overcome
Belt Selection Table
| Pipe Diameter (mm) | Flat Belt Width (mm) | Capacity (TPH) @ 1.0 t/m³ | Capacity (TPH) @ 1.3 t/m³ | Capacity (TPH) @ 1.6 t/m³ |
| 150 | 600 | 45 | 36 | 40 |
| 200 | 700 | 85 | 68 | 60 |
| 210 | 750 | 95 | 75 | 65 |
| 220 | 800 | 100 | 80 | 70 |
| 250 | 1000 | 130 | 104 | 80 |
| 300 | 1100 | 190 | 150 | 90 |
| 350 | 1300 | 260 | 205 | 110 |
| 400 | 1500 | 340 | 270 | 130 |
| 450 | 1600 | 430 | 345 | 140 |
| 500 | 1850 | 530 | 425 | 160 |
| 550 | 2000 | 640 | 510 | 180 |
| 600 | 2200 | 760 | 605 | 200 |
| 650 | 2400 | 895 | 715 | 210 |
| 750 | 2500 | 1190 | 950 | 230 |
