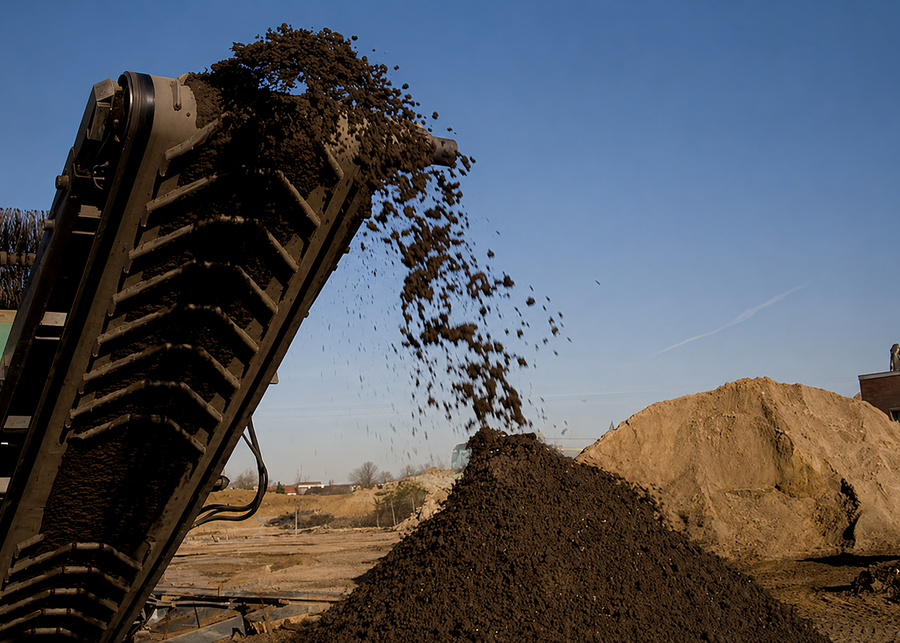

Smooth surface conveyor belts typically allow a maximum inclination of about 20°, depending on the material. For steeper inclines, Chevron Cleated Belts are used. These belts feature integrally vulcanized rubber profiles made from highly abrasion resistant compounds in 45-50 Shore or 60 Shore hardness. Designed to operate without special idlers, the chevron profile ensures compatibility with standard conveyor systems and allows smooth travel over flat return idlers. At Forech, we emphasize the importance of customized solutions in this key segment, recognizing their critical role in material handling. We continuously enhance our offerings by developing specialized cover types tailored to specific applications, ensuring reliable performance and long service life across a range of industrial conditions.

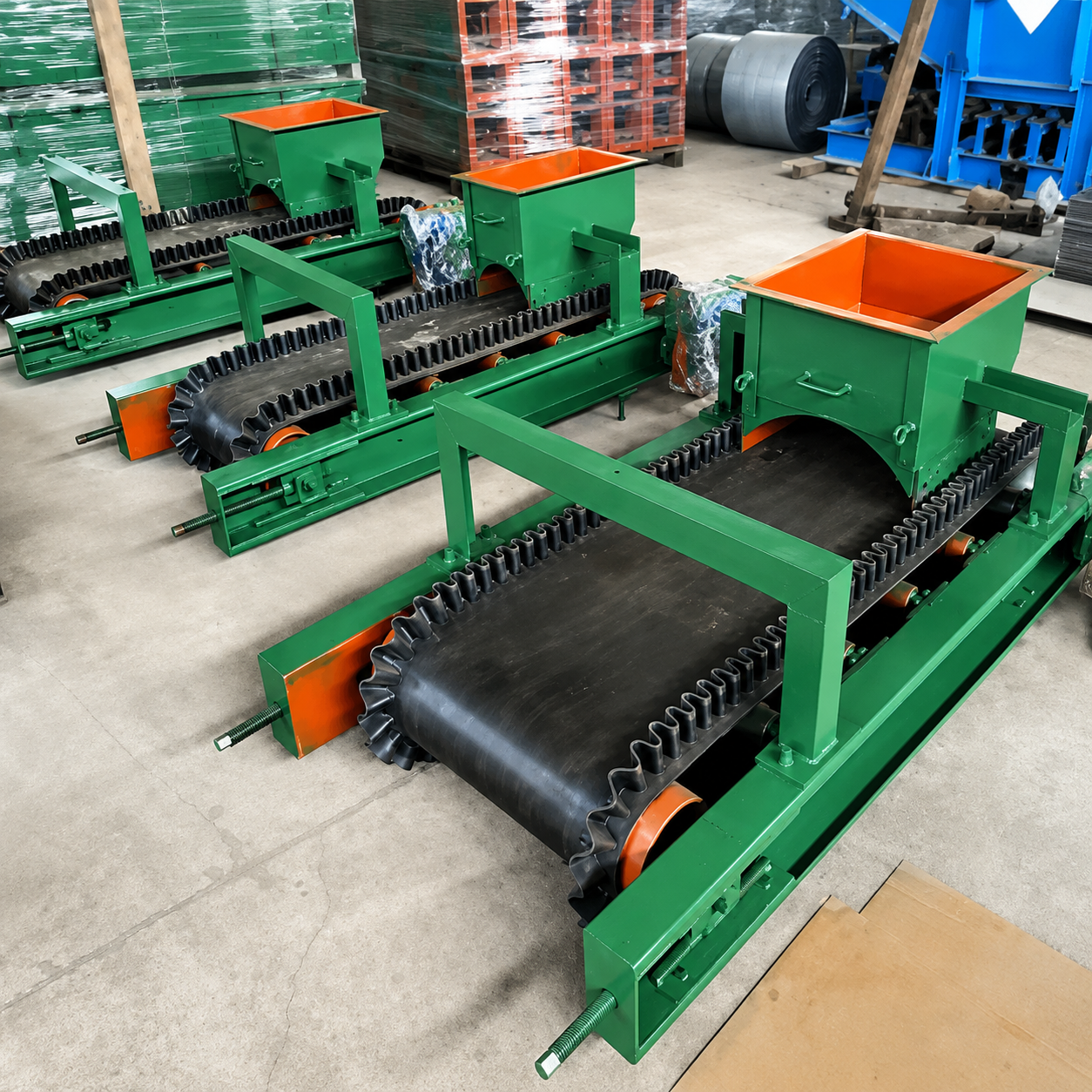

Chevron Conveyor Belt

Profile Selection Criteria

Type of material	Material example	Max. angle of inclination
		Height of cleats
		h(mm): 16	h(mm): 25	h(mm): 32
Powdery	Flour, lime etc	25°	28°	30°
Loose Flowing	Grains: corn, barley, wheat, rye, dray sand	20/25°	25/30°	25/30°
Loose Rolling	Gravel, ground stone	25°	28°	30°
Sticky	Wet sand, ash, wet loam	30/35°	35/40°	40/45°
Packed	Sacks, jute sacks, paper sacks	30/35°	35/40°	35/40°

Variants

Special Profile and Weigh Feeder Belts

Rough Top Conveyor Belt, Herringbone Pattern Conveyor Belt; and a host of other options are available in open ends and endless forms. Multi-V constructions with ¼ inch height are also available.

Forech manufactures special profile weigh feeder belts for use in thermal power plants & cement factories. These are highly calibrated seamless belts with side profile and centre guides.

Advantages:

FORECH offers a wide range of Profiled Chevron Cleated Belts, which make increased angles of 30° to 40° inclination possible. The prime advantage of high angle of inclination is that LESS SPACE is needed to reach the desired conveying height. Chevron Cleated Belts offered by FORECH-HILTON comply with INTERNATIONAL STANDARDS of rubber grades requirements.

Technical Specification

S.No.	Parameters	Range
1	Belt Width	600-1800mm
2	Type of Fabric	Polyamide-Polyamide (NN), Polyester-Polyamide (EP), Aramid construction
3	Profile/Cleat Height	6.35 to 32mm
4	No of Plies	1-5
5	Edge	Normally Cut edge construction
6	Working Tension	250 - 1600 kN/m
7	Cover Grades	General Purpose (GP), HR, FR, OR, etc (special grade available based on customer requirement)
