Wear Protection & Wear Resistance
Forech offers a wide range of Wear Resistant Elements in various dimensions, with thicknesses from 30mm to 150mm. These elements are designed as a modular unit to facilitate quick and easy replaceability of a worn out element from an entire Chute, a Hopper or a truck-bed.
Each Element is made of a rubber plate, which is bonded to a 5mm - 10mm thick steel plate, depending on the overall thickness of the total Element. This provides the Element with secure fastening.
Forech Wear Resistant Elements are made of a very high quality wear resistant rubber grade developed specially to meet the mining and mineral processing industries’ need for economical, high performance, wear protection systems. These products have a high wear strength and provide a long service life, which result in less down time and even lesser maintenance costs.
Forech Wear Resistant Elements are easy to handle and drastically reduce noise and vibration when installed and prove to be much more economical when compared to steel liners.
PP Type Wear Elements

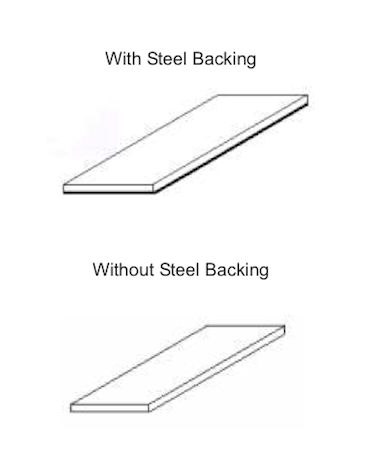

Smooth Wear Resistant Rubber 60 Shore A (with and without Steel Backing)
Steel back liners are supplied with 5mm thick steel up to a total thickness of 80mm above which the steel backing is 10mm thick.
| Thickness | Width × Length (mm) |
|---|---|
| PP 30 | 500 × 1000 |
| 750 × 1500 | |
| PP 40 | 500 × 1000 |
| 750 × 1500 | |
| PP 50 | 500 × 1000 |
| 750 × 1500 | |
| PP 60 | 500 × 1000 |
| 750 × 1500 | |
| PP 75 | 500 × 1000 |
| 750 × 1500 | |
| PP 80 | 500 × 1000 |
| 750 × 1500 | |
| PP 100 | 500 × 1000 |
| 750 × 1500 | |
| PP 125 | 500 × 1000 |
| 750 × 1500 | |
| PP 150 | 500 × 1000 |
| 750 × 1500 |
PT Type Wear Plate
Smooth Wear Resistant Rubber 60 Shore A, with Aluminium Tracks
| Thickness | Width × Length (mm) |
|---|---|
| PP 50 | 500 × 1000 |
| 750 × 1500 | |
| PP 75 | 500 × 1000 |
| 750 × 1500 | |
| PP 100 | 500 × 1000 |
| 750 × 1500 | |
| PP 125 | 500 × 1000 |
| 750 × 1500 | |
| PP 150 | 500 × 1000 |
| 750 × 1500 |
Impact Bars
Forech Impact Bars are designed to absorb impact at the loading points of Conveyor Belts, where a combination of high energy absorption and low friction is needed.
Due to ease of installation, these Impact Bars replace the conventional idler sets. The top cover is made of an Ultra High Molecular Weight Polyethelene, which gives these Impact Bars a very low friction top surface. The middle portion is of a high quality energy absorbing rubber, which acts as a shock absorber at the loading zones of conveyor installation.
Forech Impact Bars come with a ‘T-Track’ fastening system, which enables variable fixing points throughout the length of the Bars. A ‘T-Track’ fastening system also makes the element adaptable to any cradle arrangement, which the conveyor installation might have.
The Impact Bars come in standard lengths of 1220mm and 1500mm, with 10mm top cover of UHMWPE and are supplied with 8 bolts and Nylock Nuts as a standard accessory.
Special sizes of Impact Bars are also manufactured on special requests.
| IB Type Impact Bar |
|---|
| 050 × 100 × 1220 |
| 050 × 100 × 1500 |
| 075 × 100 × 1220 |
| 075 × 100 × 1500 |
| 100 × 100 × 1220 |
| 100 × 100 × 1500 |

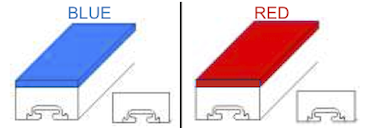

With N10mm Top Layer of UHMWPE and Al. Profile for T Bolt Having Rubber hardness of 60 Deg. A (Blue) and 45 Deg. A (Red)
Lifter Bars
Forech also manufactures and supplies Lifter Bars for grinding mills as stock items. These Lifter Bars are composites of metal and rubber and come with a ‘T-Track’ fastening system. They are made with high wear resistant rubber grade.
The standard length available is 1500mm and 1220mm, in thicknesses ranging from 75mm to 150mm.
| WB Type Wear Bar | |
|---|---|
| WB 100 | 100 × 1220 mm |
| 100 × 1500 mm | |
| 125 × 1220 mm | |
| 125 × 1500 mm | |
| 150 × 1220 mm | |
| 150 × 1500 mm | |
| WB 125 | 100 × 1220 mm |
| 100 × 1500 mm | |
| 125 × 1220 mm | |
| 125 × 1500 mm | |
| 150 × 1220 mm | |
| 150 × 1500 mm | |
| WB 150 | 125 × 1220 mm |
| 125 × 1500 mm | |
| 150 × 1220 mm | |
| 150 × 1500 mm | |
Wear Bar, 60 Shore A, Wear Resistant Rubber with Aluminium Profile for T- Bolt
